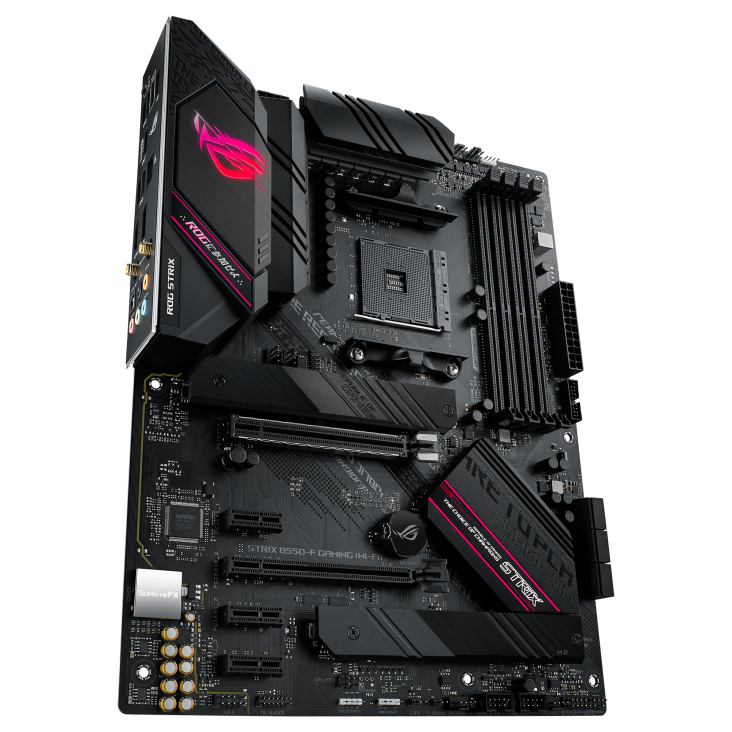

Las tarjetas madre de la serie ROG Strix B550 Gaming ofrecen buena parte de las características que puedes encontrar en la serie de gama alta ROG Strix X570 Gaming- como por ejemplo PCIe® 4.0. Con un suministro de energía potente y una refrigeración eficaz- la serie ROG Strix B550 Gaming está optimizada para las CPU AMD Ryzen™ de 3.ª Gen. Con una estética futurista y el intuitivo software ROG- la ROG Strix B550-F Gaming (Wi-Fi) es la plataforma ideal para montar el equipo de tus sueños.

- CPU:
AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors
* Refer to www.asus.com for CPU support list

- Chipset:
AMD B550
Memoria
4 x DIMM- Max. 128GB- DDR4 4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
4 x DIMM- Max. 128GB- DDR4 5100(O.C)/5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Memory
Next Generation AMD Ryzen PRO Processors
OptiMem II
3rd Gen AMD Ryzen™ Processors
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

- Gráficos:
1 x DisplayPort 1.2
1 x HDMI 2.1(4K@60HZ)
*Graphics specifications may vary between CPU types.
Integrated Graphics Processor
Soporte Multi GPU
Supports AMD 2-Way CrossFireX Technology
Slots de Expansión
AMD B550 Chipset
1 x PCIe 3.0 x16 (x4 mode) *
3 x PCIe 3.0 x1
1 x PCIe 4.0 x16 (x16 mode)

- Almacenamiento:
1 x M.2_1 socket 3- with M key- type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
AMD B550 Chipset :
1 x M.2_2 socket 3- with M key- type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
6 x SATA 6Gb/s port(s)
3rd Gen AMD Ryzen™ Processors :
Support Raid 0- 1- 10

- LAN:
Intel® I225-V 2.5Gb Ethernet
ASUS LANGuard
Datos de redes inlámbricas
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Intel® Wi-Fi 6 AX200
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160

- Bluetooth: Bluetooth v5.1*
*BT 5.1 function will be ready in Windows 10 build 19041 or later.
Audio
- Audio Shielding
ROG SupremeFX7.1-Channel High Definition Audio CODEC S1220A
- Premium Japanese audio capacitors
- Audio Cover
- Optical S/PDIF in port(s) at back panel
- SupremeFX Shielding™ Technology
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection- Multi-streaming- Front Panel Jack-retasking
- High quality120dBSNR stereo playback outputand113dBSNR recording input
- Supports up to 32-Bit/192kHz playback *
* Due to limitations in HDA bandwidth- 32-Bit/192kHz is not supported for 8-Channel audio.
Audio Feature :
Puertos USB
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)
Rear USB Port ( Total 8 )
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
2 x USB 3.2 Gen 1 port(s)
2 x USB 2.0 port(s)
4 x USB 2.0 port(s)

- Software Features:
ROG Exclusive Software
- RAMCache III
- ROG CPU-Z
- GameFirst VI
- Sonic Studio III + Sonic Studio Virtual Mixer
- Sonic Radar III
- DTS® Sound Unbound
- Overwolf
- Anti-virus software

- ASUS Exclusive Software Features:
Armoury Crate
- Aura Creator
- Aura Sync
- AI Noise Cancelling Microphone
AI Suite 3:
- PPSU
EPU
DIGI+ VRM
Fan Xpert 4
TurboV EVO
- EZ update
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Special Features
Aura Sync
- Standard RGB header(s)
- Addressable Gen 2 RGB header(s)
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-LED (DRAM [yellow]-CPU [red]- VGA [white]- Boot Device [yellow green)
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum M.2 heatsink
ASUS EZ DIY
-BIOS FlashBack™ button
-BIOS FlashBack™ LED
-Clear CMOS header
-ProCool
-Pre-mounted I/O shield
- SafeSlot

- Puertos I/O Traseros:
1 x BIOS FlashBack™ Button(s)
2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
1 x Intel® I225-V 2.5Gb Ethernet
4 x USB 3.2 Gen 1
2 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x Optical S/PDIF out
5 x Audio jack(s)
ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)

- Internal I/O:
1 x M.2 Socket 1 with M key- type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1 x M.2 Socket 2 with M key- type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x Thunderbolt header(s)
6 x SATA 6Gb/s connector(s)
1 x AAFP connector
1 x Thermal sensor connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
2 x Aura RGB Strip Header(s)
1 x Addressable Gen 2 header(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x System panel(s)
1 x Clear CMOS jumper(s)

- Accessorios:
1 x M.2 SSD screw package(s)
1 x M.2 Rubber Package(s)
1 x Wi-Fi moving antenna
1 x ROG Strix stickers
1 x Cable ties pack(s)
1 x Extension cable for Addressable LED
1 x ROG Thank you card
User´s manual
4 x SATA 6Gb/s cable(s)
1 x Supporting DVD

- BIOS: 256 Mb Flash ROM- UEFI AMI BIOS
Capacidad de gestión
WOL by PME- PXE

- Sistema Operativo: Windows® 10 64-bit

- Factor de forma: 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
ATX Form Factor
